985Bikes

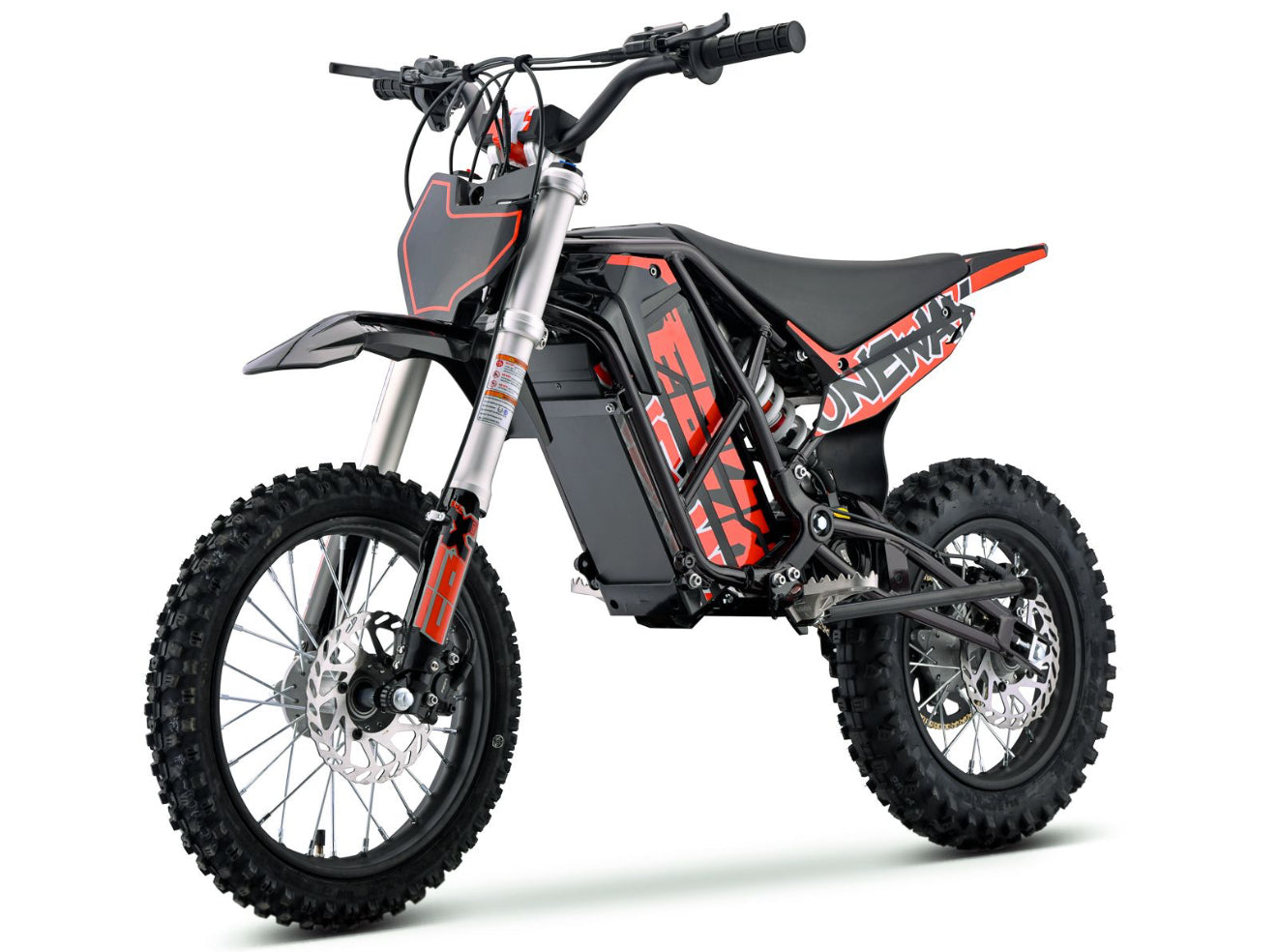

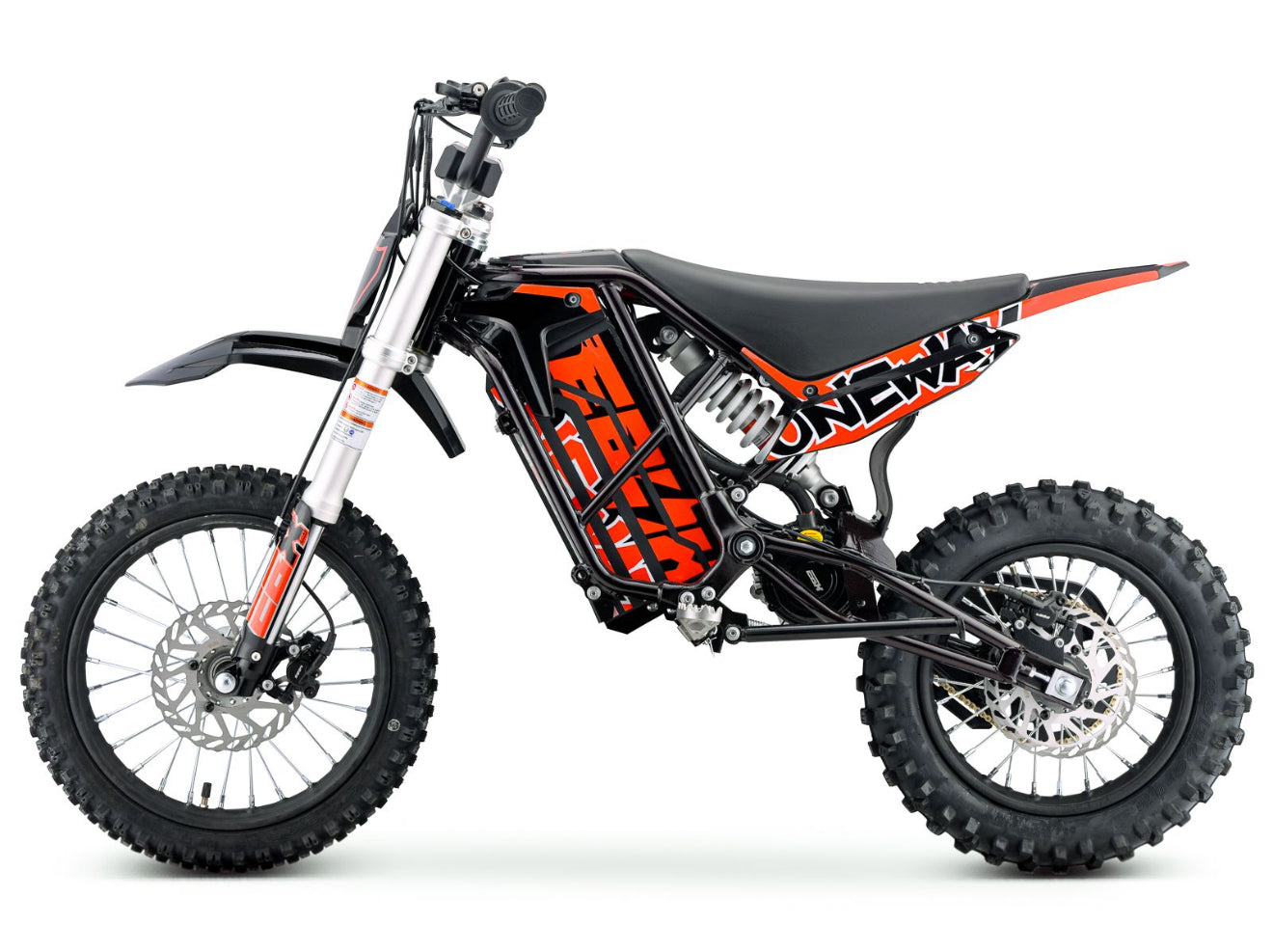

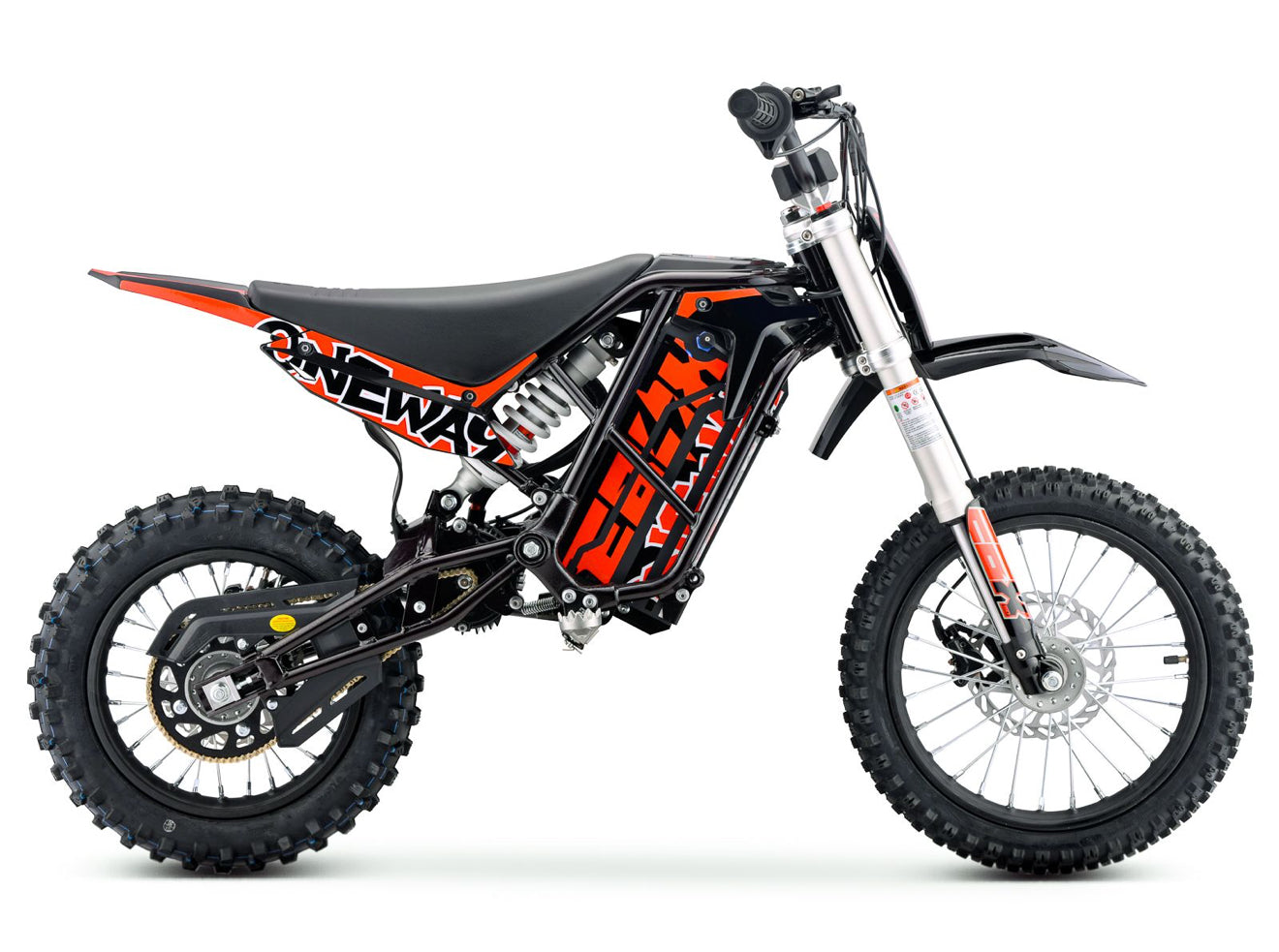

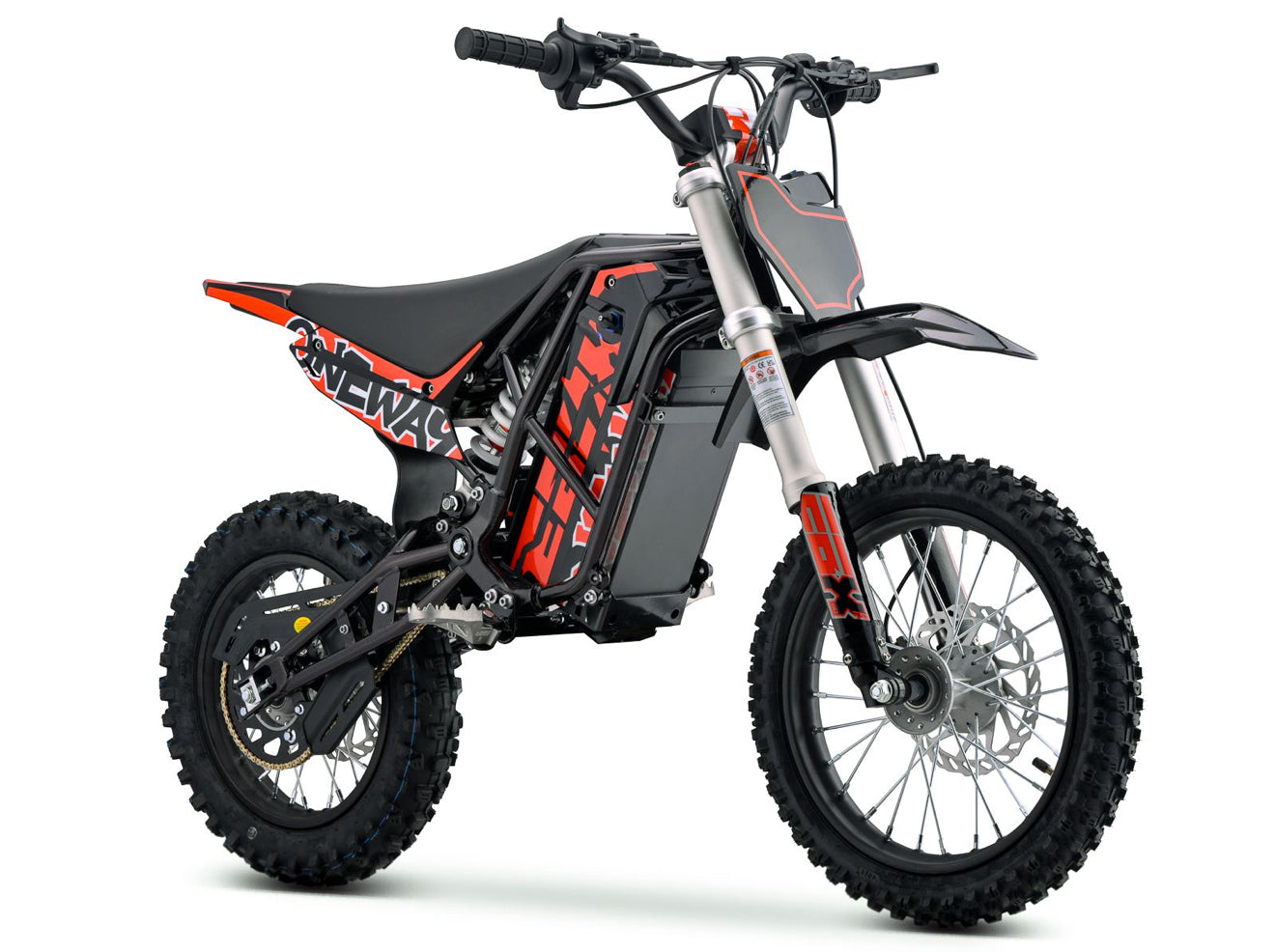

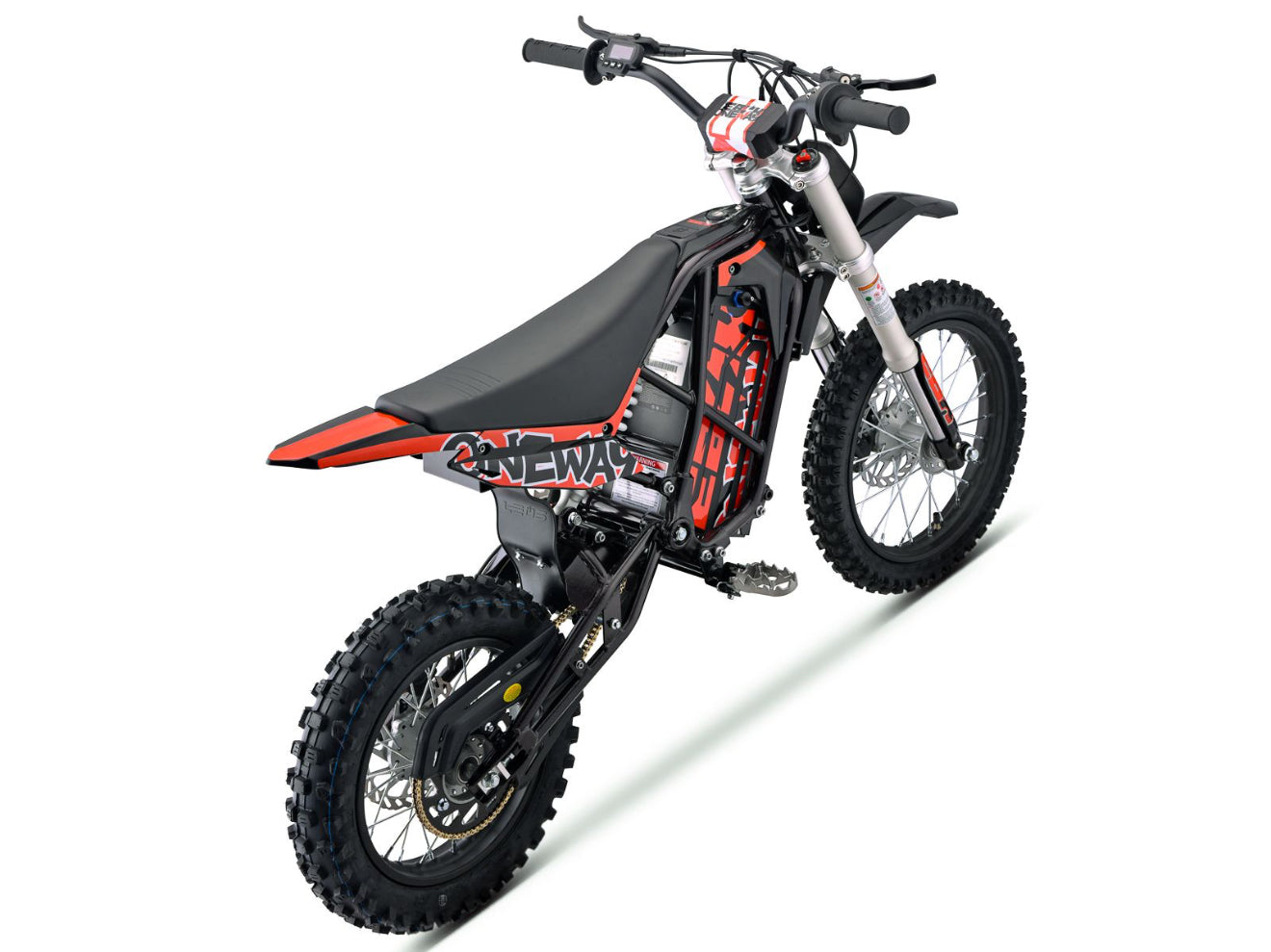

Ebox V3 60R OneWay Red

Ebox V3 60R OneWay Red

Regular price $1,999.99 USD
Regular price Sale price $1,999.99 USD
Sale Sold out
Quantity

EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand new EBX powertrain! Bigger batteries, a Fardriver 80A controller and a high power PMSM motor with encoder and temperature feedback with up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance. Added to that we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car. .



Frame type V3 Double Cradle
Front wheel size 14"
Rear wheel size 12"
Fork 150mm travel USD
Rear Suspension Progressive mono shock 150mm travel
Bar Risers Alloy Cast 36mm rise Ø22.2
Front brake Hyraulic Disc (Right lever) e-moto brakes
Front disc 180mm rotor, 4 bolt
Rear brake Hyraulic Disc (Left lever) e-moto brakes
Rear disc 180mm rotor, 4 bolt
Front tyre Upgraded 60/100-14 Dirt
Rear tyre Upgraded 80/100-12 Dirt
Chain 219H 120L
Gearing Front 10T, Rear 70T
Max load 85kg
Handlebar 6061 T6 EBOX High Rise 1pc
Seat EBOX fat seat
Motor 60V EBX PMSM motor with temp feedback and encoder
Rated Power 4.5KW
Peak power 5.2KW (6.7hp)
Max RPM 8,500
Battery New 60v 26 Ah battery with BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch
Controller 80 Amp Fardriver controller
Throttle SURRON style full twist
Display TFT odometer display with 3 speed modes and fault code analysis software
Connectors Automotive connectors with sealed wiring harness
Charger AC 100-240V, Output: 67.2V, 5A
